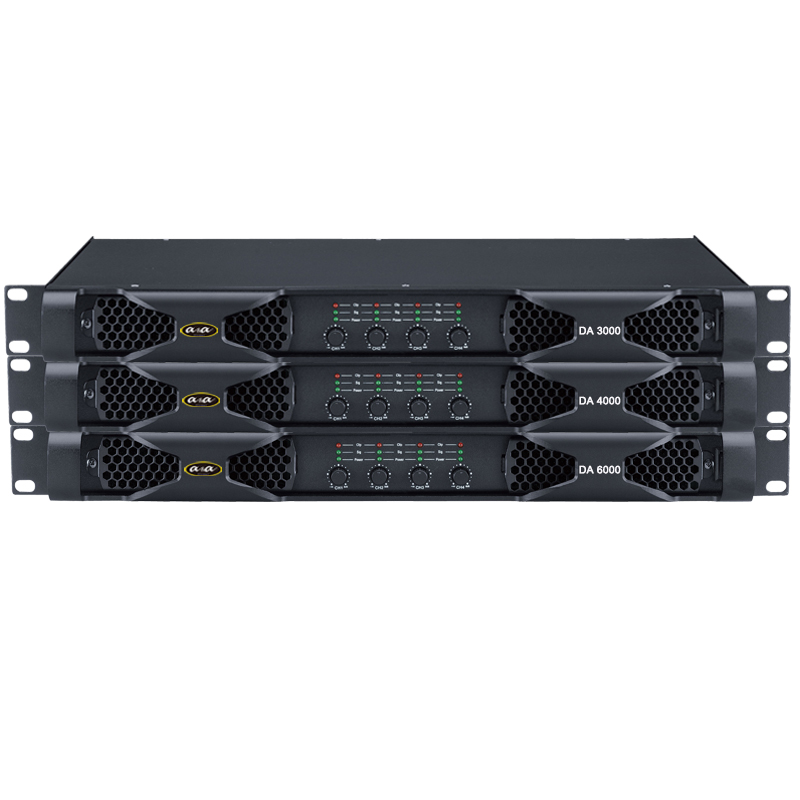

DA 6000 1U with PFC

Description

The DA series has been designed as a powerful two channel power amplifier featuring light weight, compact, high power output and high efficiency. The active power factor correction(PFC),it can be worked at wide voltage range(90-260V).

The DA series adopted high-performance digital power management technology and advanced vector switch mode power supply with optimum flexibility and maximum control and security.

Specifications

Frequency response (±0.3dB 1W@8 ohms)	20Hz to 20 kHz
Max output@1KHz,0.01% THD+N	4x1500W/8Ω; 4x2300W/4Ω
THD at full rated power@8 ohms/1KHz	<0.03%
Input sensitivity	0.775V/1V/32dB(selectable)
Input impedance	Balanced >20kΩ, Unbalanced>10kΩ
Damping factor (at 10-400Hz/8 ohms)	>600
Signal-to-Noise Ratio (A weighted)	>103dB
Protection	Shorted loaded;overloaded etc.
Digital voltage limit factor:	0.775-8V
Input Connectors	4 x XLR3
Output Connectors	4 x Neutrik Speakon NL4MP
Cooling	4-temperature-controlled fans
Work mode	Stereo/Parallel/Bridged(selectable)
Work voltage	AC 90-260V / 50-60Hz
Display	------
Dimensions(HxWxD)	483 x 44 x 381 mm
Net Weight	10.5kg

Applications

Based on the high efficiency of the balance output circuit design and reliable quality components, DA series deliver stable high power output for running main systems, monitors and subwoofers.
